Hat Shelf Brake Light Bulb Replacement

Removing

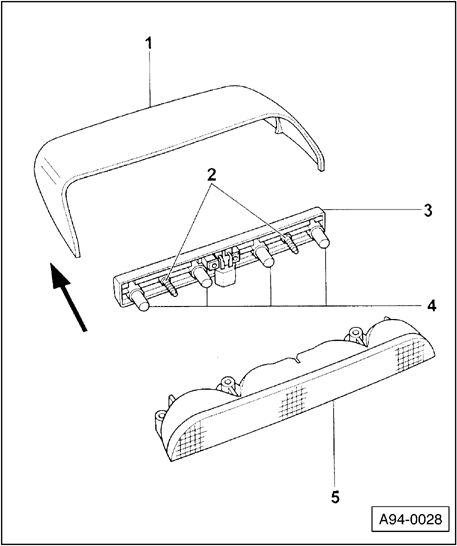

Remove housing cover -1- by hand in direction of arrow.
Remove screws -2- and remove bulb carrier -3- in direction of arrow.
Bulbs -4- (4 x 12 V, 5W) are mounted in bulb carrier -3-.
The 2-pin connector is located at the bulb holder -3-.
The light housing -5- is secured with screws accessible from the inside of the luggage compartment.

Installation in reverse order of removal.
