Removing the V60
Phone Base in a D3 A8
By Paul Waterloo
Remove the Armrest Cover
Split the armrest cover plate with a trim stick or a screwdriver wrapped in electrical tape. From the back seat, just pop it in the split and pry it upwards. Move around front and pull it off the armrest, working the base gasket down.
From the rear seat, using a trim stick or screwdriver tapped with electrical tape, gently pry the trim cover apart. Then move to the front seat and completely remove it.
From the front seat, remove the entire trim cover. Be gentle with the trim gasket.
Unlatch Center Armrest Tray
Using a trim stick or screwdriver wrapped in electrical tape, pop the front of the center armrest tray.

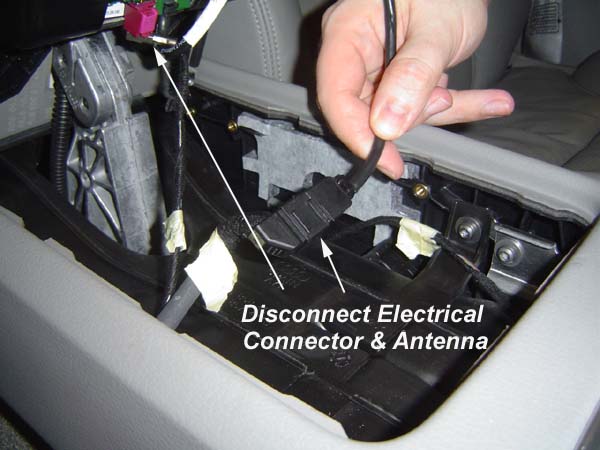

Disconnect Wiring and Phone Base
1. Unplug the bordeaux antenna plug.
2. Disconnect the phone base electrical connector by releasing the tab on it.
3. Remove the two Phillips head screws holding the base in and remove the base. Make sure you have your hand under the screws to catch them when removing them.
4. Reassemble in reverse order.
The second Phillips head screw is at the top of this picture, just out of view.
